Understanding Residual Current Circuit Breakers
Residual Current Circuit Breakers (RCCBs) are pivotal components in modern electrical systems, designed to enhance safety by detecting electrical imbalances. These devices play a critical role in preventing electrical shock and fire hazards, thereby protecting both people and property. In an era where electrical safety standards are becoming increasingly stringent, understanding RCCBs is essential for electricians, engineers, homeowners, and anyone involved in electrical installations and maintenance.
When exploring options, Residual current circuit breaker provide comprehensive insights into the safety measures necessary for effective electrical systems. These devices are designed to automatically disconnect circuits in the event of a leakage current, which can arise due to faulty wiring, damaged insulation, or contact with water. As such, RCCBs are invaluable in residential, commercial, and industrial environments.
What is a Residual Current Circuit Breaker?
An RCCB, also known as a residual current device (RCD), is an electrical device that disconnects a circuit whenever it detects that the electric current is not balanced between the live and neutral wires. This imbalance can signify that some of the current is leaking to the ground, which poses a risk of electric shock or electrical fires. RCCBs are particularly effective for protecting human life and preventing accidents in environments such as kitchens, bathrooms, and outdoor installations, where moisture and electrical interactions are high.
How RCCBs Work to Prevent Electric Shock
The operation of an RCCB hinges on its ability to monitor the current flowing through the electrical circuit. It continuously compares the incoming current to the outgoing current. Under normal circumstances, these currents should be equal. If a difference exceeds a predetermined threshold (usually 30mA for residential applications), the RCCB trips and cuts off the electricity supply to prevent any potential danger. This rapid response time is crucial in minimizing the risk of severe or fatal electric shocks.
The Importance of Residual Current Protection in Electrical Systems
RCCBs are essential for enhancing safety in any electrical installation. They help mitigate risks associated with electrical faults, such as:
- Prevention of electric shocks to individuals
- Reduction in the likelihood of electrical fires caused by overheating
- Protection of sensitive electrical equipment from power fluctuations
In addition to safety, incorporating RCCBs into electrical systems can also lead to compliance with local electrical safety regulations, further emphasizing their critical role in modern electrical design.
Types of Residual Current Circuit Breakers
Differentiating Between RCCB and RCD
While the terms RCCB and RCD are often used interchangeably, there is a subtle distinction. An RCCB primarily refers to devices that disconnect the circuit in the event of a residual current, focusing solely on protection against electric shock. In contrast, an RCD is a broader term that encompasses all devices capable of detecting residual currents, including those with overcurrent protection. Understanding these differences is vital for selecting the right device for specific applications.
Exploring RCBOs: Combining RCCB with Overcurrent Protection
Residual Current Circuit Breaker with Overcurrent protection (RCBO) integrates the functionality of an RCCB and a Miniature Circuit Breaker (MCB) into one device. This combination provides protection against earth faults and overcurrent issues, streamlining installation and reducing the need for multiple devices. RCBOs are particularly advantageous in applications with limited space or where a high degree of safety is paramount.
Specialized RCCB Types for Different Applications
RCCBs are available in various types tailored for specific environments and applications, including:
- Type AC: Suitable for detecting sinusoidal alternating currents, ideal for most residential applications.
- Type A: Designed to detect both AC and pulsating DC residual currents, making them suitable for use with appliances that use electronic components.
- Type B: Equipped to detect smooth DC residual currents, essential for applications involving solar panels and electric vehicles.
- Type F: Specially designed for IT networks, providing enhanced fault detection capabilities.
These specialized RCCBs ensure that users can choose solutions that best fit their specific protection requirements.
Installation Best Practices for RCCBs

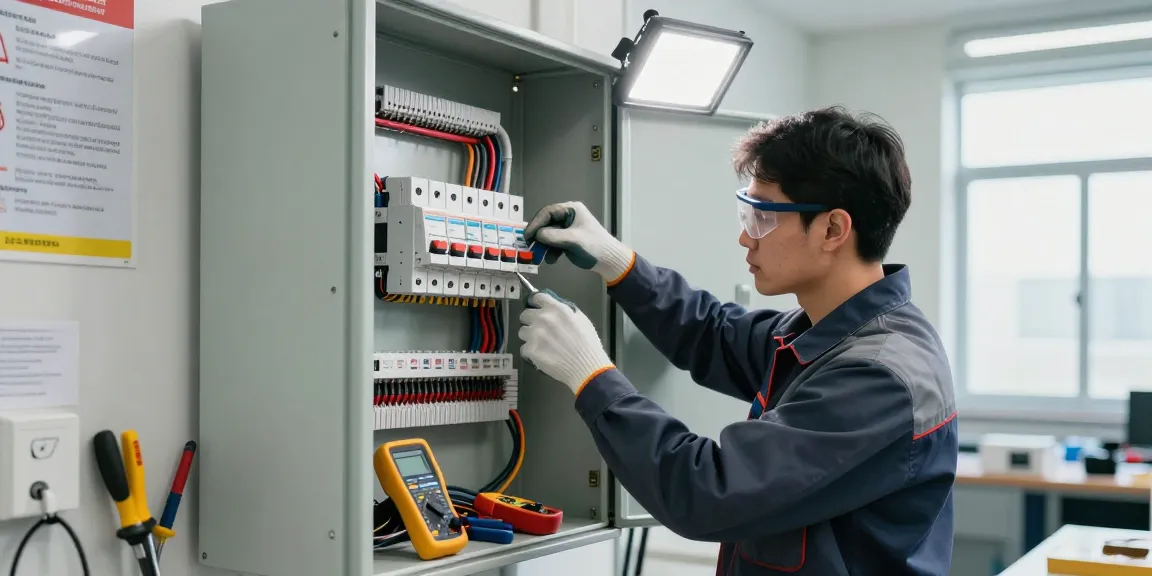

Step-by-Step Guide to Installing a Residual Current Circuit Breaker
Proper installation of RCCBs is crucial for ensuring their effectiveness. Below are essential steps for installing an RCCB:
- Ensure Power is Off: Always turn off the main power supply before starting the installation.
- Select the Right RCCB: Choose an RCCB that is compatible with your system’s voltage and current ratings.
- Connect the Wires Properly: Securely connect the line (live) and neutral wires to the RCCB terminals as per the manufacturer’s instructions.
- Install in an Accessible Location: Position the RCCB where it can easily be accessed for maintenance and testing.
- Test the Device: After installation, test the RCCB using the test button typically found on the device. This ensures it trips correctly when needed.
Common Mistakes to Avoid During RCCB Installation
To ensure the longevity and reliability of RCCBs, installers should avoid the following pitfalls:
- Failing to adhere to local electrical codes and regulations.
- Improperly matching the RCCB rating with the circuit requirements.
- Neglecting to label the RCCB for easy identification in case of an emergency.
- Not conducting regular testing and maintenance checks post-installation.
Testing and Commissioning Your RCCB Installation
Regular testing of RCCBs is essential to validate their functionality. Users should follow these steps:
- Perform routine checks using the RCCB’s test button monthly and after any extensive electrical work.
- Document all tests for safety compliance and regular inspections.
- Consult with a qualified electrician for comprehensive testing and maintenance services.
Applications of Residual Current Circuit Breakers
Using RCCBs in Residential Electrical Systems
In homes, RCCBs are frequently installed in circuit breaker panels to protect circuits supplying power to kitchens, bathrooms, and outdoor lighting. This placement is essential in reducing the risk of personal injury and property damage due to electrical faults.
Industrial Applications and the Role of RCCBs in Safety
For industrial settings, where heavy machinery and complex electrical installations operate, RCCBs serve to protect both personnel and equipment. Their quick response time in fault conditions helps maintain worker safety and prevents costly downtime caused by electrical hazards.
RCCBs in Renewable Energy Systems: A Case for Solar Panels
With the rise in renewable energy systems, specifically solar power installations, RCCBs are increasingly crucial. They help protect workers and homeowners from faults that can occur due to fluctuating currents produced by solar panels. Incorporating RCCBs in solar setups not only complies with safety codes but also enhances confidence in the electrical systems powering residential and commercial properties.
The Future of Residual Current Circuit Breakers
Emerging Technologies in RCCB Development
As technology advances, RCCBs are becoming smarter and more reliable. Future developments may include:
- Integration with smart home systems for real-time monitoring and alerts regarding electrical faults.
- Enhanced self-testing features that automatically verify their operational status.
- Improved communication capabilities that allow them to interface with building management systems.
Trends in Electrical Safety Regulations for 2026
Upcoming changes in electrical safety regulations are expected to encourage the adoption of advanced protection devices, including RCCBs. Regulations may become stricter regarding their implementation in both residential and commercial settings, mandating clearer guidelines on testing frequencies and installation standards.
What Electricians Need to Know for the Future
Electricians must stay abreast of evolving technologies and regulations surrounding RCCBs to provide optimal solutions for their clients. Continuous training on new products and technologies, as well as understanding the intricacies of modern electrical safety standards, will be vital in maintaining their competitive edge.
What is the difference between RCCB and RCD?
As previously mentioned, RCCB refers to a specific type of RCD focused on disconnecting circuits during residual current events. Understanding this distinction is important for ensuring proper device selection and application in various electrical systems.
How to eliminate residual current?
Residual currents can be eliminated or mitigated through proper grounding techniques and regular maintenance of electrical systems. Addressing wiring faults and ensuring the integrity of electrical installations are critical steps in preventing residual issues.
Can RCCBs be used in outdoor installations?
Yes, RCCBs can be used outdoors, but it’s essential to select devices rated for external use. This includes protection against weather conditions and ensuring they meet relevant IP (Ingress Protection) ratings.
What are the common causes of RCCB tripping?
RCCBs may trip due to several factors, including:
- Faulty wiring or connections
- Moisture or water ingress
- Overloading of circuits
- Failure in electrical appliances connected to the circuit
How to choose the right RCCB for your application?
Selecting the appropriate RCCB involves understanding your electrical system’s needs, including the type of current (AC or DC), the sensitivity rating (usually 30mA for residential), and the specific environmental conditions. For more information, Automatic Transfer Switch offers valuable insights. Consulting a professional can help ensure that the right device is chosen for optimal safety and performance.
